To Awaken the Power of Wisdom

Traction Battery System Solutions

CORNEX is committed to meet the growing demand of the traction battery products through building new traction systems by intelligent manufacturing. Cornex adopt the Automotive SPICE quality standard and the green innovation production mode to create cell products with higher safety and efficiency, and long cycle life, to provide users with a full range of green and efficient system solutions.

LFP
20Ah
100Ah
125Ah
150Ah
168.4Ah
180Ah
230Ah
305Ah
Products Project Standard Techniques

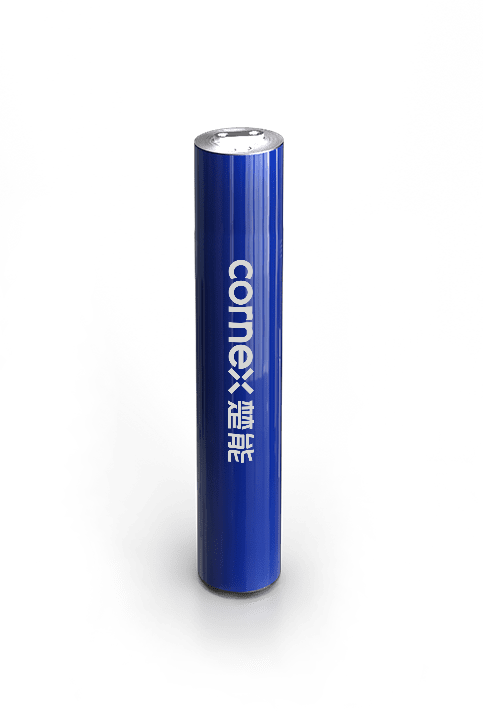

Nominal Capacity20Ah
Nominal Voltage3.2V
Nominal Energy64Wh
Diameter 34±0.3mm
Height185.2±0.3mm(Excluding Pole)
Weight0.370±0.05kg
Energy Density172Wh/kg
Charge-Rate/Discharge-Rate0.5C/1C
Charge/Discharge Cut-off Voltage3.65V/2.5V
Discharge at Low Temperatures ≥80%(-20℃,1C)
Cycle life≥2000cycle (70%SOH)
Operation Temperature Charge:-10~55℃  Discharge:-20~55℃
Storage Ambient Temperature   Allow Storage:-30~60℃ (SOC:30%~50%) Optimum Storage: 10~35℃ (SOC:30%~50%)
Storage Humidity≤75%RH
Shipping Status30%~50%SOC
Products Project Standard Techniques
Nominal Capacity100Ah
Nominal Voltage3.2V
Nominal Energy320Wh
Thickness27.2±0.3mm
Width300.7±0.5mm
Height112.5±0.5mm(Overall Height)
Weight2.0±0.15kg
Energy Density160Wh/kg
Charge-Rate/Discharge-Rate1C/1C
Charge/Discharge Cut-off Voltage3.65V/2.5V
Discharge at Low Temperatures ≥80%(-20℃,1C)
Cycle life ≥2500cycle(80%SOH)
≥3000cycle(70%SOH)
Operation Temperature Charge:-10~55℃  Discharge:-30~55℃
Storage Ambient Temperature -30~60℃ (SOC:30%~50%)
Storage Humidity≤75%RH
Shipping Status30%~50%SOC
Products Project Standard Techniques
Nominal Capacity125Ah
Nominal Voltage3.2V
Nominal Energy400Wh
Thickness33.5±0.5mm
Width200.4±0.5mm
Height173.2±0.5mm(Overall Height)
Weight2.4±0.2kg
Energy Density165Wh/kg
Charge-Rate/Discharge-Rate1C/1C
Charge/Discharge Cut-off Voltage3.65V/2.5V
Discharge at Low Temperatures ≥80%(-20℃,1C)
Cycle life≥2000cycle (80%SOH)
Operation Temperature Charge:-20~55℃  Discharge:-30~55℃
Storage Ambient Temperature -40~60℃ (SOC:30%~50%)
Storage Humidity≤75%RH
Shipping Status30%~50%SOC
Products Project Standard Techniques
Nominal Capacity150Ah
Nominal Voltage3.2V
Nominal Energy480Wh
Thickness33.5±0.5mm
Width200.4±0.5mm
Height207.2±0.5mm(Overall Height)
Weight2.9±0.2kg
Energy Density170Wh/kg
Charge-Rate/Discharge-Rate1C/1C
Charge/Discharge Cut-off Voltage3.65V/2.5V
Discharge at Low Temperatures ≥80%(-20℃,1C)
Cycle life≥2000cycle (80%SOH)
Operation Temperature Charge:-20~55℃  Discharge:-30~55℃
Storage Ambient Temperature -40~60℃ (SOC:30%~50%)
Storage Humidity≤75%RH
Shipping Status30%~50%SOC
Products Project Standard Techniques
Nominal Capacity168.4Ah
Nominal Voltage3.2V
Nominal Energy538.88Wh
Thickness39.2±0.5mm
Width300.7±0.5mm
Height112.5±0.5mm(Overall Height)
Weight2.912±0.2kg
Energy Density185Wh/kg
Charge-Rate/Discharge-Rate0.3C/0.3C
Charge/Discharge Cut-off Voltage3.65V/2.5V
Discharge at Low Temperatures ≥80%(-20℃,1C)
Cycle life≥2500cycle (80%SOH)
Operation Temperature Charge:-20~55℃  Discharge:-30~55℃
Storage Ambient Temperature -40~60℃ (SOC:30%~50%)
Storage Humidity≤75%RH
Shipping Status30%~50%SOC
Products Project Standard Techniques
Nominal Capacity180Ah
Nominal Voltage3.2V
Nominal Energy576Wh
Thickness21.5±0.5mm
Width580.2±0.5mm
Height118.4±0.5mm
Weight3.3±0.2kg
Energy Density175Wh/kg
Charge-Rate/Discharge-Rate2C/4C
Charge/Discharge Cut-off Voltage3.65V/2.5V
Discharge at Low Temperatures ≥80%(-20℃,1C)
Cycle life≥2500cycle (80%SOH)
Operation Temperature Charge:-20~55℃  Discharge:-30~55℃
Storage Ambient Temperature -40~60℃ (SOC:30%~50%)
Storage Humidity≤75%RH
Shipping Status30%~50%SOC
Products Project Standard Techniques
Nominal Capacity230Ah
Nominal Voltage3.2V
Nominal Energy736Wh
Thickness53.7±0.5mm
Width174.4±0.5mm
Height207.2±0.5mm(Overall Height)
Weight4.1±0.2kg
Energy Density180Wh/kg
Charge-Rate/Discharge-Rate0.5C/1C
Charge/Discharge Cut-off Voltage3.65V/2.5V
Discharge at Low Temperatures ≥80%(-20℃,1C)
Cycle life≥4000cycle (80%SOH)
Operation Temperature Charge:-20~55℃  Discharge:-30~55℃
Storage Ambient Temperature -40~60℃ (SOC:30%~50%)
Storage Humidity≤75%RH
Shipping Status30%~50%SOC
Products Project Standard Techniques
Nominal Capacity305Ah
Nominal Voltage3.2V
Nominal Energy976Wh
Thickness71.5±0.5mm
Width174.4±0.5mm
Height207.2±0.5mm(Overall Height)
Weight5.4±0.2kg
Energy Density185Wh/kg
Charge-Rate/Discharge-Rate0.5C/0.5C
Charge/Discharge Cut-off Voltage3.65V/2.5V
Discharge at Low Temperatures ≥80%(-20℃,1C)
Cycle life≥3000cycle (80%SOH)
Operation Temperature Charge:-20~55℃  Discharge:-30~55℃
Storage Ambient Temperature -40~60℃ (SOC:30%~50%)
Storage Humidity≤75%RH
Shipping Status30%~50%SOC
NCM
Products Project Standard Techniques
Nominal Capacity33.0Ah
Nominal Voltage3.62V
Nominal Energy119Wh
Diameter46.5±0.3mm
Height95.0±0.5mm(Excluding Pole)
Weight0.412±0.05kg
Energy Density290Wh/kg
Quick Charge20min (10%~90%SOC)
Charge/Discharge Cut-off Voltage4.2V/2.8V
Discharge at Low Temperatures≥80%(-20℃,1C)
Cycle life≥1500cycle (70%SOH)
Operation TemperatureCharge:-10~55℃  Discharge:-20~55℃
Storage Ambient Temperature -30~60℃ (SOC:30%~50%)
Storage Humidity≤75%RH
Shipping Status30%~50%SOC
Products Project Standard Techniques
Nominal Capacity164Ah
Nominal Voltage3.75V
Nominal Energy611.7Wh
Thickness50.5±0.5mm
Width194.4±0.5mm
Height112.2±0.5mm(Overall Height)
Weight2.5±0.2kg
Energy Density245Wh/kg
Charge-Rate/Discharge-Rate2C/4C
Charge/Discharge Cut-off Voltage4.35V/3.0V
Discharge at Low Temperatures≥80%(-20℃,1C)
Cycle life≥2000cycle (80%SOH)
Operation TemperatureCharge:-20~55℃  Discharge:-30~55℃
Storage Ambient Temperature -40~60℃ (SOC:30%~50%)
Storage Humidity≤75%RH
Shipping Status30%~50%SOC
Products Project Standard Techniques
Nominal Capacity185Ah
Nominal Voltage3.70V
Nominal Energy685Wh
Thickness27.5±0.5mm
Width300.4±0.5mm
Height125.2±0.5mm(Overall Height)
Weight2.4±0.2kg
Energy Density285Wh/kg
Charge-Rate/Discharge-Rate2C/4C
Charge/Discharge Cut-off Voltage4.30V/3.0V
Discharge at Low Temperatures≥80%(-20℃,1C)
Cycle life≥2000cycle (80%SOH)
Operation TemperatureCharge:-20~55℃  Discharge:-30~55℃
Storage Ambient Temperature -40~60℃ (SOC:30%~50%)
Storage Humidity≤75%RH
Shipping Status30%~50%SOC
33Ah 164Ah 185Ah

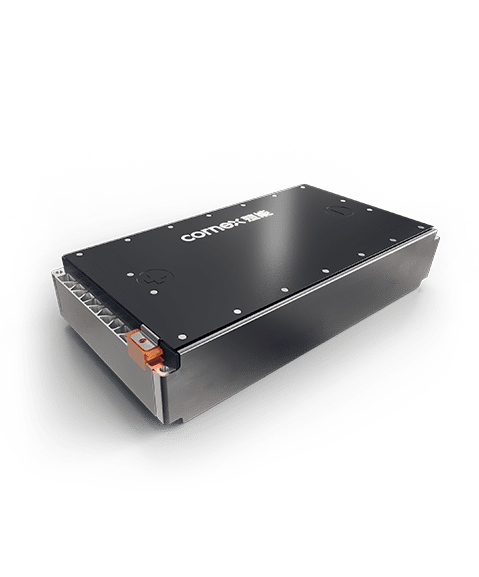

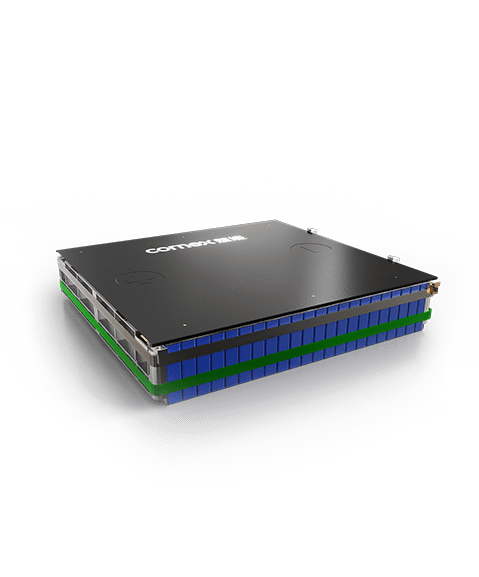

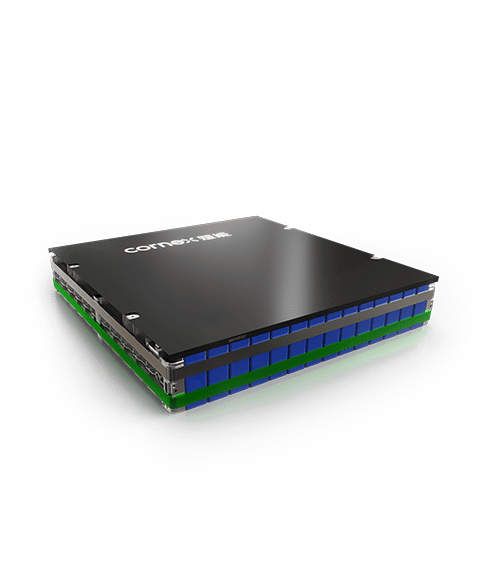

Module
Products Project Standard Techniques
Dimensions652*606*116mm
Series-Parallel1P44S
Weight92.5±0.2kg
Nominal Voltage140.8V
Nominal Capacity. @1C . Rt≥100.1Ah
Rated Energy14.1kWh
Working Voltage Range110V~160.6V
Energy Density(1C)≥152.4Wh/kg
PACK Efficiency≥95%
Standard Discharge0.3C to 2.5V ,Rt
Standard Charge0.3C CC to 3.65V,CV to 0.05C ,Rt
Collection ConfigurationWithout CSC, BMU interfaces are reserved for wire harness collection
Products Project Standard Techniques
Dimensions600*304*115mm
Series-Parallel1P14S
Weight43.3±0.2kg
Nominal Voltage44.8V
Nominal Capacity. @1C . Rt≥168.4Ah
Rated Energy7544Wh
Working Voltage Range35V~51.1V
Max Continuous Discharge,RT1C
Maximum Discharge Current 25℃@10s@SOC50% 3C
Energy Density(0.33C/RT)≥174.2Wh/kg
PACK Efficiency94%
Standard Discharge0.3C to 2.5V ,Rt
Standard Charge0.3C CC to 3.65V,CV to 0.05C ,Rt
Express Charge Mode≤26min(25℃,30%~80%SOC)
Products Project Standard Techniques
Dimensions622*590*115mm
Series-Parallel1P28S
Weight83.7±0.2kg
Nominal Voltage89.6V
Nominal Capacity. @1C . Rt≥168.4Ah
Rated Energy15088Wh
Working Voltage Range70V~102.2V
Max Continuous Discharge,RT1C
Maximum Discharge Current 25℃@10s@SOC50% 3C
Energy Density(0.33C/RT)≥180.5Wh/kg
PACK Efficiency≥97%
Standard Discharge0.3C to 2.5V ,Rt
Standard Charge0.3C CC to 3.65V,CV to 0.05C ,Rt
Express Charge Mode≤26min(25℃,30%~80%SOC)
1P44S 1P14S 1P28S
