To Feel the Future without Boundaries

Energy Storage Solutions

CORNEX is focused on promoting the high-quality development of new energy storage and give full play to the economic and social benefits of the whole life cycle, and providing first-class solutions of energy storage battery from energy storage on power generation, energy storage on power transmission and distribution, energy storage on power consumption to meet the demand of all scenario safety, energy efficiency, economic efficiency, installation and maintenance convenience and other multi-dimension.

Cell Module
100Ah
150Ah
280Ah
320Ah
PEL01-P18
PEL02-P46L
PEL03-P71L
Products Project Standard Techniques
Specifications Model100
Chemical SystemsLFP/Gr
Battery TypePrismatic Aluminum Shell
Cell DimensionsT50*L160*H115mm
Nominal Capacity100Ah
Nominal Rate1C
Energy Density≥160Wh/kg
Cycle life≥4000cls@25℃
CertificationGB/T36276&UL1973&IEC62619&UL9540A&UN38.3
Products Project Standard Techniques
Specifications Model150
Chemical SystemsLFP/Gr
Battery TypePrismatic Aluminum Shell
Cell DimensionsT50*L160*H166mm
Nominal Capacity150Ah
Nominal Rate1C
Energy Density≥168Wh/kg
Cycle life≥4000cls@25℃
CertificationGB/T36276&UL1973&IEC62619&UL9540A&UN38.3
Products Project Standard Techniques
Specifications Model280
Chemical SystemsLFP/Gr
Battery TypePrismatic Aluminum Shell
Cell DimensionsT71*L173*H207mm
Nominal Capacity280Ah
Nominal Rate0.5P
Energy Density≥165Wh/kg
Cycle life≥8000cls@25℃
CertificationGB/T36276&UL1973&IEC62619&UL9540A&UN38.3
Products Project Standard Techniques
Specifications Model320
Chemical SystemsLFP/Gr
Battery TypePrismatic Aluminum Shell
Cell DimensionsT49*L262*H207mm
Nominal Capacity320Ah
Nominal Rate0.5P
Energy Density≥174Wh/kg
Cycle life≥10000cls@25℃
CertificationGB/T36276&UL1973&IEC62619&UL9540A&UN38.3
Products Project Standard Techniques

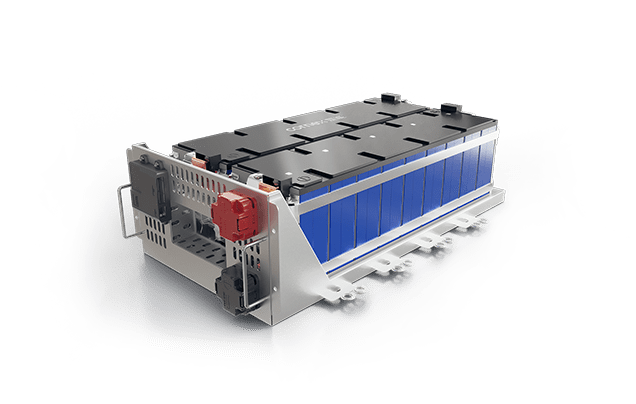

Specifications ModelPEL01-P18
Nominal CapacityLFP-280Ah
Monomer Specifications71173207-280Ah
PACK Mode1P18S
Nominal Voltage57.6V
Nominal Energy16.128kWh
Nominal Rate0.5P
Subrack DimensionsL823*W394*H230mm
Cooling ModelAir-Cooled
Application AreaPower Storage
Products Project Standard Techniques
Specifications ModelPEL02-P46L
Nominal CapacityLFP-280Ah
Monomer Specifications71173207-280Ah
PACK Mode1P52S
Nominal Voltage166.4V
Nominal Energy46.59kWh
Nominal Rate0.5P
Subrack DimensionsL1152*W810*H240mm
Cooling ModelLiquid-Cooled
Application AreaPower Storage
Products Project Standard Techniques
Specifications ModelPEL03-P71L
Nominal CapacityLFP-320Ah
Monomer Specifications49262207-320Ah
PACK Mode1P70S
Nominal Voltage224V
Nominal Energy71.68kWh
Nominal Rate0.5P
Subrack DimensionsL2050*W630*H240mm
Cooling ModelLiquid-Cooled
Application AreaPower Storage
Air-Cooled Power
Products Project Standard Techniques

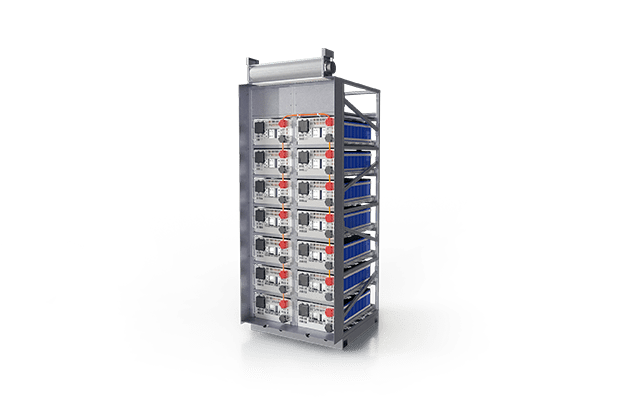

Specifications ModelPEL01-R210F
Nominal CapacityLFP-280Ah
PACK Mode1P234S
Nominal Voltage748.8V
Working Voltage585-842.4V
Nominal Energy209.664kWh
Nominal Rate0.5P
Dimensions 972*954*2290mm
Weight 1550kg
Products Project Standard Techniques
Specifications ModelPEL01-R371F
Nominal CapacityLFP-280Ah
PACK Mode1P414S
Nominal Voltage1324.8V
Working Voltage1035-1490.4V
Nominal Energy370.944kWh
Nominal Rate0.5P
Dimensions 950*1431*2290mm
Weight 2650kg
Products Project Standard Techniques

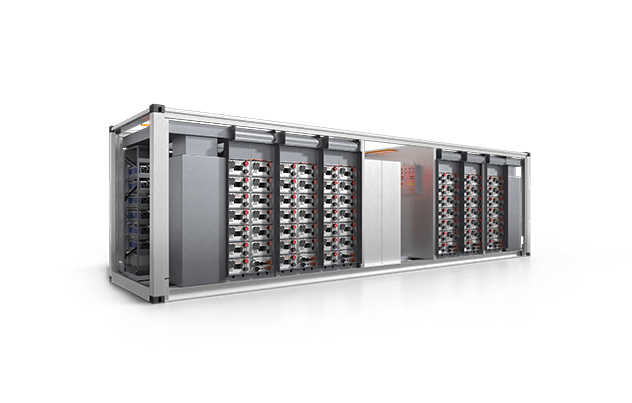

Specifications ModelPEL01-C2935F
Nominal CapacityLFP-280Ah
PACK Mode14*1P234S
Nominal Voltage748.8V
Working Voltage585-842.4V
Nominal Energy2935kWh
Nominal Rate1250kW
Dimensions 10668*2438*2896
Weight 34T
Products Project Standard Techniques
Specifications ModelPEL01-C5935F
Nominal CapacityLFP-280Ah
PACK Mode16*1P414S
Nominal Voltage1324.8V
Working Voltage1035-1490.4V
Nominal Energy5935kWh
Nominal Rate2500kW
Dimensions 13716*2438*2896
Weight 54T
PEL01-R210F PEL01-R371F PEL01-C2935F PEL01-C5935F
Communication and Home
Products Project Standard Techniques
Specifications ModelPPL01-48100
Nominal CapacityLFP-100Ah
Monomer Specifications50160118-100Ah
PACK Mode1P16S
Nominal Voltage51.2V
Nominal Energy5.12kWh
Nominal Rate1C
Overall Dimensions L485*W440*H132mm
Weight 42kg
Application Area Communication Power Supply\Back-Up Power
Products Project Standard Techniques

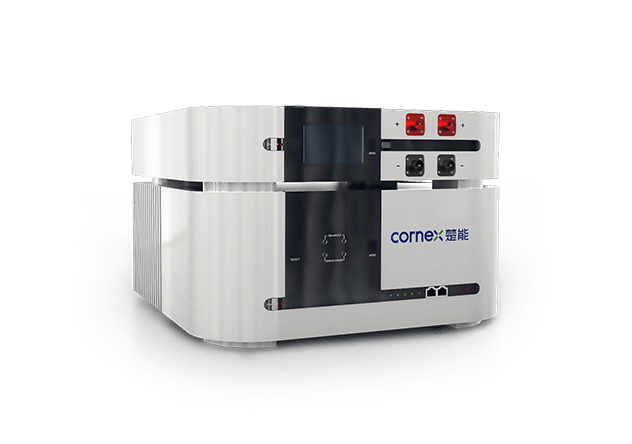

Specifications ModelHES01-H05
Nominal CapacityLFP-100Ah
Monomer Specifications50160118-100Ah
PACK Mode1P16S
Nominal Voltage51.2V
Nominal Energy5.12kWh
Maximum Charge-Rate/Discharge-Rate3000W
Overall Dimensions L240*W610*H720mm
Weight 65kg
Application Area Home Energy Storage
PPL01-48100 HES01-H05
