To Awaken the Power of Wisdom

EV Battery Products

CORNEX is committed to meet the growing demand of the EV battery products through building new traction systems by intelligent manufacturing. CORNEX adopt the Automotive SPICE quality standard and the green innovation production mode to create cell products with higher safety and efficiency, and long cycle life, to provide users with a full range of green and efficient system solutions.

Cell Module
Cell
RF39-20A
PF300-100A
PF300-166A
PF173-230A
PF300-166A
PF200-125A
PF200-150A
PF173-230A
Basic parameters

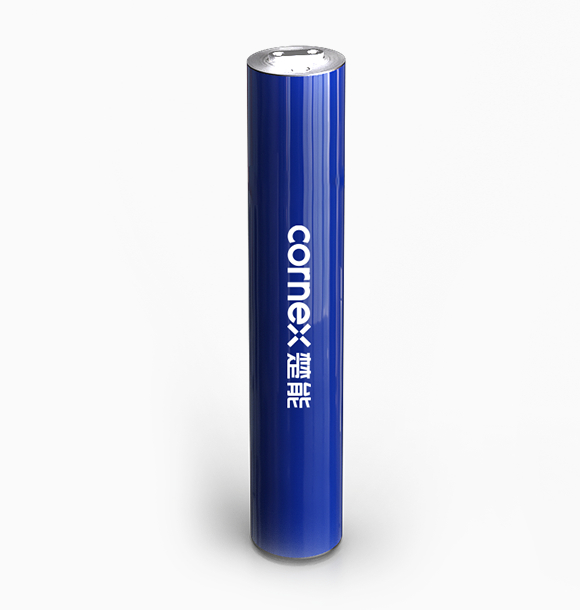

Product specificationsRF39-20A
Material typeLFP
Rated capacity (Ah)20.5Ah
Rated voltage (V)3.2V
Charge/discharge rate (C)0.5/1
Cycle life(25℃，@70%SOH)2000
Dimensions (D*H mm)Φ39*139mm
Weight (kg)0.37kg
Application fieldsTwo-wheeled vehicles/Three-wheeled vehicles
Travel sightseeing car/A00-class passenger vehicles
Testing and certification GB38031/GBT31484/GBT31486/UN38.3
Basic parameters

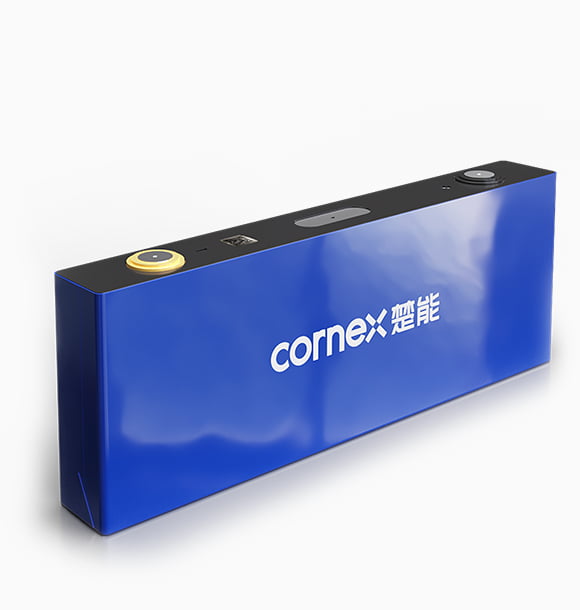

Product specificationsPF300-100A
Material typeLFP
Rated capacity (Ah)100Ah
Rated voltage (V)3.2V
Charge/discharge rate (C)1/1
Cycle life(25℃，@80%SOH)2500
Dimensions (W*L*H mm)27*300*112mm
Weight (kg)1.98kg
Application fieldsPassenger vehicles
Testing and certification GB38031/GBT31484/GBT31486/UN38.3
Basic parameters
Product specificationsPF300-166A
Material typeLFP
Rated capacity (Ah)166Ah
Rated voltage (V)3.2V
Charge/discharge rate (C)1/1
Cycle life (25℃，@80%SOH)2500
Dimensions (W*L*H mm)39*300*113mm
Weight (kg)2.97kg
Application fieldsPassenger vehicles
Testing and certificationGB38031/GBT31484/GBT31486/UN38.3
Basic parameters
Product specificationsPF173-230A
Material typeLFP
Rated capacity (Ah)230Ah
Rated voltage (V)3.2V
Charge/discharge rate (C)1/1
Cycle life (25℃，@80%SOH)4000
Dimensions (W*L*H mm)54*173*207mm
Weight (kg)4.1kg
Application fieldsCommercial vehicles/Buses/Heavy trucks
Testing and certificationGB38031/GBT31484/GBT31486/UN38.3
Module
PF300-166A-M7
PF300-135A-M13
PF173-230A-P35L
PF300-135A-P55L
Basic parameters
Product nameEV battery module
Product specificationsPF300-166A-M7
Configuration 1P14S
Rated capacity (Ah) 166Ah
Rated voltage (V)44.8V
Rated energy (kWh)7.4kWh
Charge/discharge rate (C)1/1
Dimensions (W*L*H mm)304*600*115mm
Weight (kg)44.1kg
Application fieldsPassenger vehicles
Basic parameters
Product nameEV battery module
Product specificationsPF300-135A-M13
Configuration 1P32S
Rated capacity (Ah) 135Ah
Rated voltage (V)102.4V
Rated energy (kWh)13.82kWh
Charge/discharge rate (C)1/1
Dimensions (W*L*H mm)582*605*119mm
Weight (kg)80kg
Application fieldsPassenger vehicles
Basic parameters
Product nameStandard C type battery package
Product specificationsPF173-230A-P35L
Configuration 1P48S
Rated capacity (Ah) 230Ah
Rated voltage (V)153.6V
Rated energy (kWh)35.33kWh
Charge/discharge rate (C)1/1
CoolingLiquid cooling
Dimensions (W*L*H mm)630*1060*240mm
Weight (kg)218kg
Application fieldsCommercial vehicles
Basic parameters

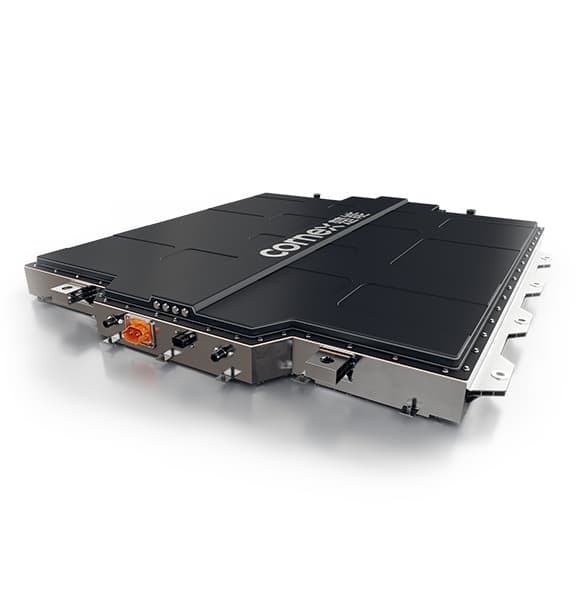

Product nameEV battery PACK
Product specificationsPF300-135A-P55L
Configuration 1P128S
Rated capacity (Ah) 135Ah
Rated voltage (V)409.6V
Rated energy (kWh)55.3kWh
Charge/discharge rate (C)1/1
Cooling Liquid cooling
Dimensions (W*L*H mm)1366*1431*135mm
Weight (kg)375kg
Application fieldsPassenger vehicles
* All information on this page might be updated or modified in the future. Therefore, the above information is provided for reference only and constitutes neither an offer nor a commitment.
