To Feel the Future without Boundaries

Energy Storage Products

CORNEX is focused on promoting the high-quality development of new energy storage and give full play to the economic and social benefits of the whole life cycle, and providing first-class solutions of energy storage battery from energy storage on power generation, energy storage on power transmission and distribution, energy storage on power consumption to meet the demand of all scenario safety, energy efficiency, economic efficiency, installation and maintenance convenience and other multi-dimension.

Cell Grid ESS Commercial and Industrial ESS Telecom and Home Portable Power

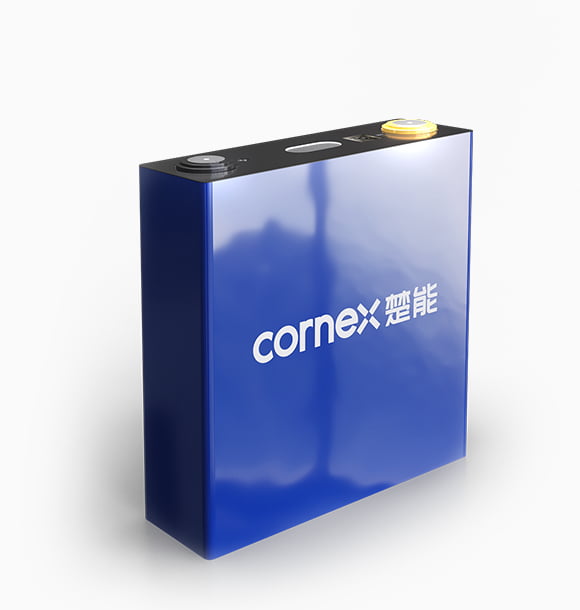

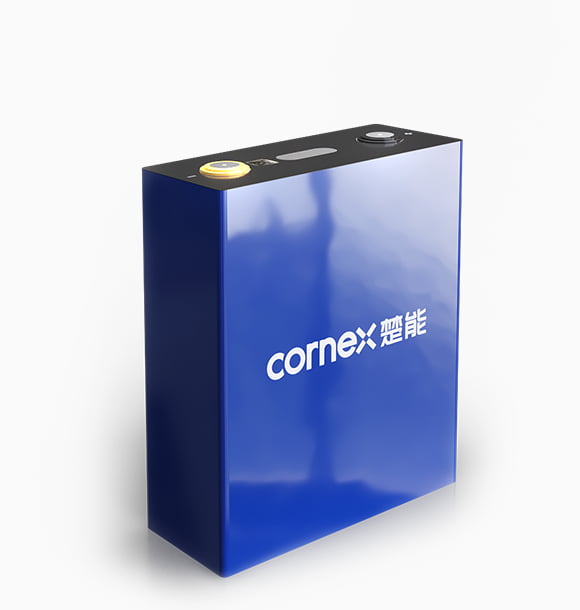

Cell
PF39-20A
PF173-280A
PF173-150A
PF160-100A
PF160-150A
PF173-315A
PF173-306A
Basic parameters
Product specificationsRF39-20A
Material typeLFP
Rated capacity (Ah)20.5Ah
Rated voltage (V)3.2V
Charge/discharge rate (C)0.5/1
Cycle life(25℃，@70%SOH)2000
Dimensions (D*H mm)Φ39*139mm
Weight (kg)0.37kg
Application fieldsTwo-wheeled vehicles/Three-wheeled vehicles
Travel sightseeing car/A00-class passenger vehicles
Testing and certification GB38031/GBT31484/GBT31486/UN38.3
Basic parameters
Product specificationsPF173-280A
Material typeLFP
Rated capacity (Ah) 280Ah
Rated voltage (V)3.2V
Charge/discharge rate (P) 0.5
Energy efficiency95%
Cycle life(25℃，@70%SOH)10000
Dimensions (W*L*H mm)71.5*174.4*207.2mm
Weight (kg)5.3kg
Application fieldsGrid ESS/Commercial and Industrial ESS/E-Vessel
Testing and certification GB/UN38.3/UL/IEC/CCS
Basic parameters
Product specificationsPF173-150A
Material typeLFP
Rated capacity (Ah) 150Ah
Rated voltage (V)3.2V
Charge/discharge rate (P) 1
Energy efficiency93%
Cycle life(25℃，@70%SOH)6000
Dimensions (W*L*H mm)44.7*174.2*189.6mm
Weight (kg)3.05kg
Application fieldsCommercial and Industrial ESS/Telecom ESS/Home ESS
Testing and certification GB/UN38.3/UL/IEC
Basic parameters
Product specificationsPF160-100A
Material typeLFP
Rated capacity (Ah) 100Ah
Rated voltage (V)3.2V
Charge/discharge rate (C)1
Energy efficiency93%
Cycle life(25℃，@70%SOH)6000
Dimensions (W*L*H mm)50*160.3*118.5mm
Weight (kg)2kg
Application fieldsTelecom ESS/Home ESS
Testing and certification GB/UN38.3/UL/IEC
Basic parameters
Product specificationsPF160-150A
Material typeLFP
Rated capacity (Ah) 150Ah
Rated voltage (V)3.2V
Charge/discharge rate (C)1
Energy efficiency93%
Cycle life(25℃，@70%SOH)6000
Dimensions (W*L*H mm)50*160.3*167.5mm
Weight (kg)2.85kg
Application fieldsTelecom ESS/Home ESS
Testing and certification GB/UN38.3/UL/IEC
Basic parameters
Product specificationsPF173-315A
Material typeLFP
Rated capacity (Ah) 315Ah
Rated voltage (V)3.2V
Charge/discharge rate (P) 0.5
Energy efficiency95%
Cycle life(25℃，@70%SOH)12000
Dimensions (W*L*H mm)71.5*174.4*207.2mm
Weight (kg)5.76kg
Application fieldsGrid ESS/Commercial and Industrial ESS/E-Vessel
Testing and certification GB/CCS/UN38.3/UL/IEC
Basic parameters
Product specificationsPF173-306A
Material typeLFP
Rated capacity (Ah) 306Ah
Rated voltage (V)3.2V
Charge/discharge rate (P) 0.5
Energy efficiency95%
Cycle life(25℃，@70%SOH)12000
Dimensions (W*L*H mm)71.5*174.4*207.2mm
Weight (kg)5.67kg
Application fieldsGrid ESS/Commercial and Industrial ESS/E-Vessel
Testing and certification GB/CCS/UN38.3/UL/IEC
Grid ESS
PF173-280A-P46L
PF173-280A-P16
PF173-280A-R354F
PF173-280A-C5677F
PF173-280A-C3354L
Basic parameters
Product name"Submerge" Liquid cooling battery module
Product specificationsPF173-280A-P46L
Configuration 1P52S
Rated capacity (Ah) 280Ah
Rated voltage (V)166.4V
Rated energy (kWh)46.592kWh
Charge/discharge rate (P) 0.5
Energy efficiency≥94%
CoolingLiquid cooling
Dimensions (W*L*H mm)810*1100*240mm
Weight (kg)330kg
Application fieldsGrid ESS/Commercial and Industrial ESS
Technical features"Submerge" firefighting/Active firefighting
Basic parameters
Product nameAir cooling battery module
Product specificationsPF173-280A-P16
Configuration 1P18S
Rated capacity (Ah) 280Ah
Rated voltage (V)57.6V
Rated energy (kWh)16.128kWh
Charge/discharge rate (P) 0.5
Energy efficiency≥94%
CoolingAir cooling
Dimensions (W*L*H mm)450*846*230mm
Weight (kg)113kg
Application fieldsGrid ESS/Commercial and Industrial ESS
Basic parameters
Product nameAir Cooling battery rack
Product specificationsPF173-280A-R354F
Configuration 1P414S
Cell capacity (Ah)280Ah
Rated voltage (V)1324.8V
Rated energy (kWh)370.944kWh
Charge/discharge rate (P) 0.5
Energy efficiency≥93%
CoolingAir cooling
Dimensions (W*L*H mm)1395*910*2250mm
Weight (kg)2800kg
Application fieldsGrid ESS
Basic parameters
Product nameAir Cooling battery energy storage container
Product specificationsPF173-280A-C5677F
Configuration 16*1P396S
Cell capacity (Ah)280Ah
Nominal energy (kWh）5677kWh
Rated power (kW）2500kW
Rated voltage (V)1267.2V
Range of working voltage (V）990～1445.4V
Range working temperature (℃）-20～55℃
Thermal managementIntelligent air cooling
Firefighting systemPerfluorohexanone/Aerosol
System communicationModbus-RTU/TCP
IP protectionIP54
Dimensions (L*W*H mm)13716*2438*2896mm (45ft）
Weight (T)52T
Application fieldsGrid ESS
Basic parameters
Product nameLiquid cooling battery energy storage container
Product specificationsPF173-280A-C3354L
Configuration 9*1P416S
Cell capacity (Ah)280Ah
Nominal energy (kWh）3354kWh
Rated power (kW）1700kW
Rated voltage (V)1331.2V
Range of working voltage (V）1040～1500V
Range working temperature (℃）-20～55℃
Thermal managementLiquid cooling
Firefighting system"Submerge" Firefighting system
System communicationModbus-RTU/TCP
IP protectionIP55
Dimensions (L*W*H mm)6050*2440*2896mm (20ft）
Weight (T)34T
Application fieldsGrid ESS
Commercial and Industrial ESS
Basic parameters
Product nameLiquid cooling outdoor cabinets
Product specificationsOTS01-H215L
Configuration1P240S
Cell capacity (Ah)280Ah
Nominal energy (kWh）215kWh
Rated power(kW)100kW
Range of DC-side voltage (V)600～876V
Output voltage (V)380V@AC
Energy efficiency≥90%@AC
Thermal managementLiquid cooling
Firefighting system Perfluorohexanone/Aerosol
System communicationModbus-RTU/TCP
IP protectionIP55
Dimensions (W*L*H mm)1000*1280*2340mm
Weight (kg)2200kg
Application fieldsGrid ESS/Commercial and Industrial ESS
OTS01-H215L
Telecom and Home
Basic parameters
Product nameTelecom ESS
Product specificationsPPL01-48100
Configuration 1P16S
Rated capacity (Ah) 100Ah
Rated voltage (V)51.2V
Rated energy (kWh)5.12kWh
Charge/discharge rate (C) 1
Energy efficiency≥93%
CoolingAir cooling
Dimensions (W*L*H mm)440*485*132mm
Weight (kg)42kg
Application fieldsTelecom ESS

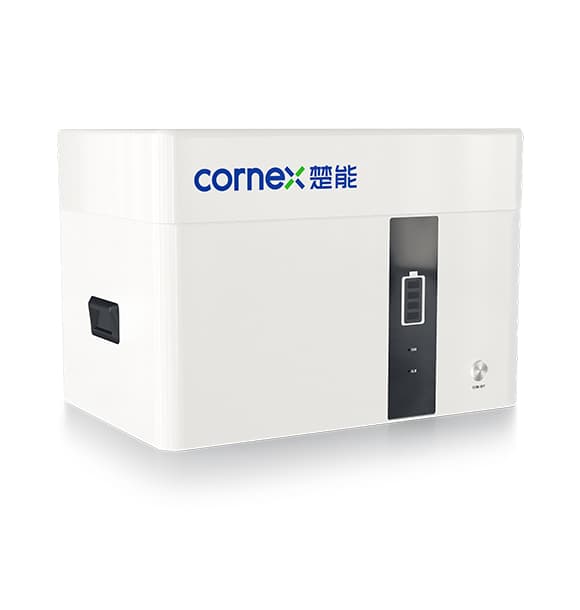

Basic parameters
Product nameHome ESS
Product specifications HES01-H05
Configuration 1P16S
Rated capacity (Ah) 100Ah
Rated voltage (V)51.2V
Rated energy (kWh)5.12kWh
Charge/discharge rate (C)1
Energy efficiency≥93%
CoolingAir cooling
Dimensions (W*L*H mm)700*200*360mm
Weight (kg)42kg
Application fieldsHome ESS
PPL01-48100 HES01-H05
Portable Power
Basic parameters
Product namePortable Power
Product specificationsPST1000
Rated energy (Wh)1049Wh
Rated power(W)1000W
Battery 20.5Ah-2P8S battery pack
Service life≥1500 circulations
Input1000W/200W
Output Continuous AC output at 220V, 1000W
USB-C:5V3A,9V3A,12V3A,15V3A,20V3A
Car charger output:DC12V/10A
USB-A:5V 2.4A*2
Application fieldsOutdoor ESS
PST1000
* All information on this page might be updated or modified in the future. Therefore, the above information is provided for reference only and constitutes neither an offer nor a commitment.
